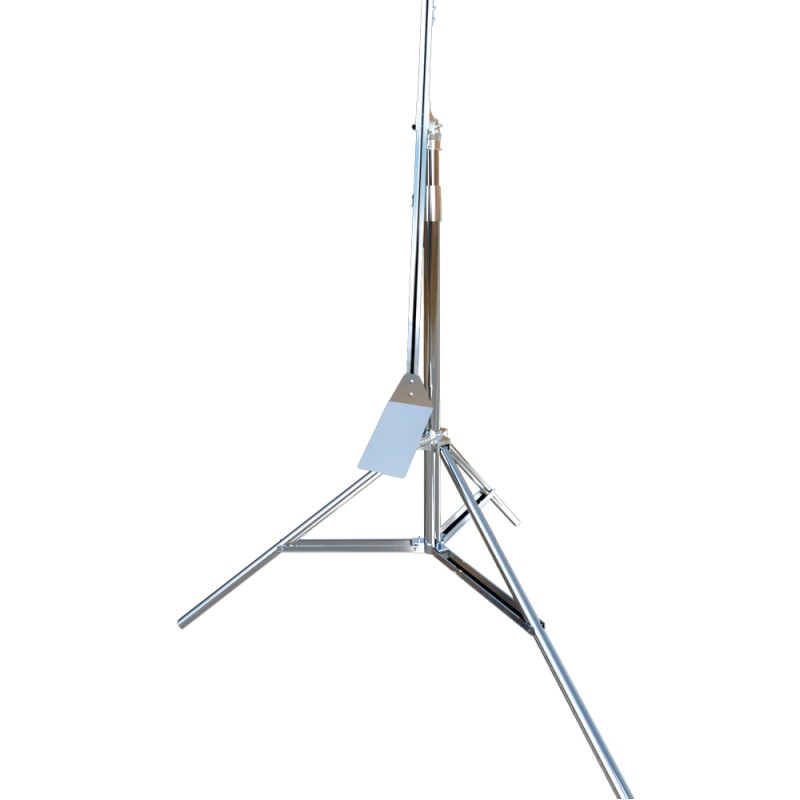

Rail Launch Pad Pro Series II - Estes

Estes rail launch pad, suitable for launching medium to large-sized models, such as those in the Estes PRO series (D, E, and F motors).

For decades, rail launch pads have been adopted by model rocket builders thanks to their rigidity, which guides the model safely during takeoff and avoids the "whiplash" typical of metal rods.
When it comes to launching model rockets with motors above D, a rail launch pad becomes practically the only truly valid solution.

This 1.8-meter-long, custom-made extruded aluminum rail guarantees a new standard in performance and reliability. The Estes Pro Series II launch pad features an all-metal construction with fiberglass-reinforced nylon components, ensuring durability and stability with every launch. The track is compatible with standard 6mm button rails.

Thanks to its innovative design, the track can rotate to a horizontal position, allowing for easy model loading. Its adjustment allows for six different angles, giving you the ability to compensate for wind according to your specific needs.

Transportation and storage are simplified thanks to its easy disassembly. Simply fold it up in seconds and you're ready to go.

Technical Specifications

• Track Length: 1.83 meters, made of two 0.91 meter extruded aluminum sections.
• Material: All-metal construction with fiberglass-reinforced nylon components for added strength.
• Base footprint diameter: 1,07 m
• Deflector Plate: 1.5 mm thick stainless steel, designed to protect against exhaust heat and hot particles.
• Adjustable Angle: Six preset launch angles, adjustable in one-degree increments for safe launch trajectories.
• Setup Time: Quick setup in about 15 minutes.
• Compatibility: Supports Rocket models equipped with standard 6 mm rails for Sierrarail type tracks.
