CATS Ground Station
Ground Station to receive data from CATS Vega flight computer. Allows to get data in real time and to trigger events for testing purposes.
Secure payments: Credit Card, PayPal, Bank Transfer
Fast Shipping - We ship worldwide
Easy returns for kits and accessories
Description
The CATS Ground Station is the supplementary hardware to the CATS Vega flight computer. It can receive data from two independent Vegas or track one Vega with both antennas. The connection to an individual Vega board is set by defining the “link phrase” that needs to match the one configured on the Vega board.

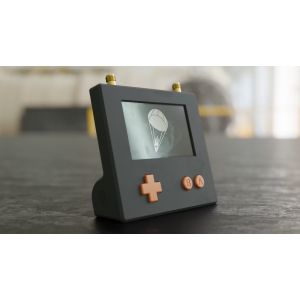

The Ground Station has a large transflective display making it very readable under bright sunlight, a USB-C interface where the battery can be charged, on-board memory for logging, a compass and a GNSS module.
The Ground Dtation allows receiving data throughout the flight, helps track the rocket with its integrated sensors and gives the opportunity to remotely trigger events for testing purposes. It is even possible to review the flight data immediately on the ground station after flight with its integrated data plotter.

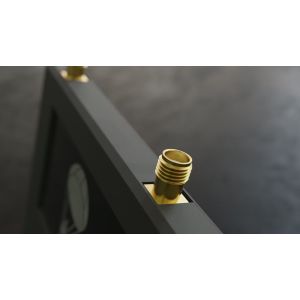

Includes two antennas.
SPECS:
Microcontroller: ESP32S2
Flash Memory: 4MB
Battery: Li-Ion 18650
Power Consumption: 60mA
Charging Current: 500mA
Display: LS027B7DH01
Radio: Dual SX1280
Radio Range: Flight Tested to 10km
IMU: LSM6DSRTR
Magnetometer: QMC5883L
GNSS: ATGM336H-5N
Product Details
CAEGRSTA
Data sheet
- Device type
- Flight computer
Ground Station to receive data from CATS Vega flight computer. Allows to get data in real time and to trigger events for testing purposes.
